STL70N10F3

N-channel Power MOSFET

STL70N10F3 Features

* Order code VDSS STL70N10F3 100 V RDS(on) max @VGS=10V 0.0084 Ω ID PTOT 16 A 136 W

* Improved die-to-footprint ratio

* Very low thermal resistance

* Low on-resistance Applications

* Switching applications Description This device is an N-channel enhancement mode Power MOSFET prod

STL70N10F3 General Description

This device is an N-channel enhancement mode Power MOSFET produced using STMicroelectronics’ STripFET™ III technology, which is specifically designed to minimize onresistance and gate charge to provide superior switching performance. 1 2 3 4 PowerFLAT™ 5x6 Figure 1. Internal schematic diagram .

STL70N10F3 Datasheet (423.68 KB)

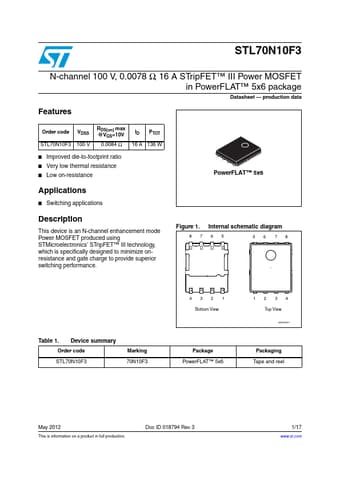

Preview of STL70N10F3 PDF

Datasheet Details

Part number:

STL70N10F3

Manufacturer:

STMicroelectronics ↗

File Size:

423.68 KB

Description:

N-channel power mosfet.
