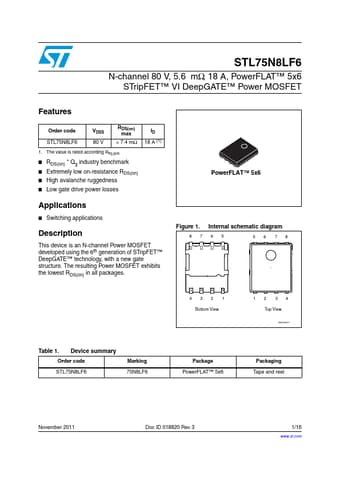

Preview of STL75N8LF6 PDF
STL75N8LF6 Datasheet Preview Page 2 STL75N8LF6 Datasheet Preview Page 3

Datasheet Details

Part number:

STL75N8LF6

Manufacturer:

STMicroelectronics ↗

File Size:

772.21 KB

Description:

N-channel power mosfet.

STL75N8LF6, N-CHANNEL POWER MOSFET

This device is an N-channel Power MOSFET developed using the 6th generation of STripFET™ DeepGATE™ technology, with a new gate structure.

The resulting Power MOSFET exhibits the lowest RDS(on) in all packages.

1 2 3 4 PowerFLAT™ 5x6 Figure 1.

Internal schematic diagram    $$$$ '333

STL75N8LF6 Features

* Order code STL75N8LF6 VDSS 80 V RDS(on) max < 7.4 mΩ ID 18 A (1) 1. The value is rated according Rthj-pcb

* RDS(on)

* Qg industry benchmark

* Extremely low on-resistance RDS(on)

* High avalanche ruggedness

* Low gate drive power losses Applications

* Switching applicati
