STL76DN4LF7AG Datasheet - STMicroelectronics

Dual N-channel Power MOSFET

STL76DN4LF7AG Features

* Order code STL76DN4LF7AG VDS 40 V RDS(on) max. 6 mΩ ID 40 A

* AEC-Q101 qualified

* Among the lowest RDS(on) on the market

* Excellent FoM (figure of merit)

* Low Crss/Ciss ratio for EMI immunity

* High avalanche ruggedness

* Wettable flank package Applications

* Switc

STL76DN4LF7AG General Description

This dual N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching. Order code STL76DN4LF7AG Table 1: Device summary .

STL76DN4LF7AG Datasheet (838.74 KB)

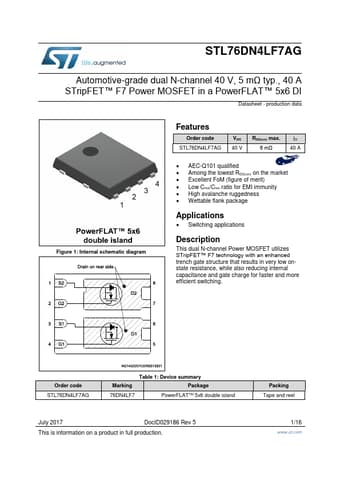

STL76DN4LF7AG Datasheet Preview — Preview of STL76DN4LF7AG PDF

Datasheet Details

Part number:

STL76DN4LF7AG

Manufacturer:

STMicroelectronics ↗

File Size:

838.74 KB

Description:

Dual n-channel power mosfet.
STL76DN4LF7AG Automotive-grade dual N-channel 40 V, 5 mΩ typ., 40 A STripFET™ F7 Power MOSFET in a PowerFLAT™ 5x6 DI Datasheet - production data Fig.
