STL7LN80K5

N-channel Power MOSFET

STMicroelectronics

STL7LN80K5 Features

* Order code STL7LN80K5 VDS 800 V RDS(on) max. 1.15 Ω ID 5A

* Industry’s lowest RDS(on) x area

* Industry’s best figure of merit (FoM)

* Ultra-low gate charge

* 100% avalanche tested

* Zener-protected Applications

* Switching applications Description This very high voltage

STL7LN80K5 General Description

This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency. Order cod.

STL7LN80K5 Datasheet (785.32 KB)

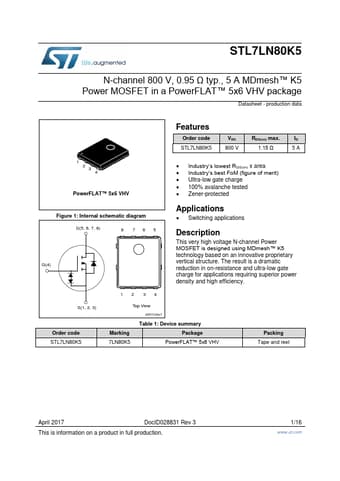

STL7LN80K5 Datasheet Preview — Preview of STL7LN80K5 PDF
