STP16N65M5

N-channel Power MOSFET

STP16N65M5 Features

* Type STF16N65M5 STI16N65M5 STP16N65M5 STU16N65M5 STW16N65M5 VDSS @ TJmax RDS(on) max 710 V < 0.279 Ω

* Worldwide best RDS(on)

* Higher VDSS rating

* High dv/dt capability

* Excellent switching performance

* Easy to drive

* 100% avalanche tested ID 12 A TAB TAB 3 2 1

STP16N65M5 General Description

These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure. The resulting product has extremely low onresistance, which is unmatched among siliconbase.

STP16N65M5 Datasheet (1.07 MB)

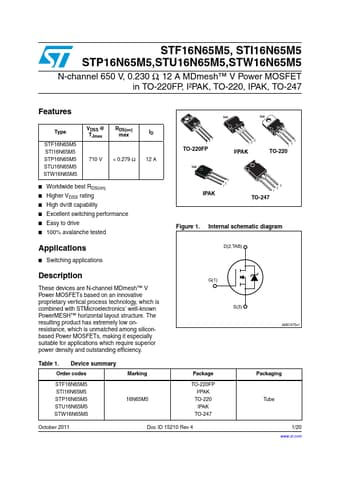

Preview of STP16N65M5 PDF

Datasheet Details

Part number:

STP16N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

1.07 MB

Description:

N-channel power mosfet.
STF16N65M5, STI16N65M5 STP16N65M5,STU16N65M5,STW16N65M5 N-channel 650 V, 0.230 Ω, 12 A MDmesh™ V Power MOSFET in TO-220FP, I²PAK, TO-220, IPAK, TO-247.
