STP16NF25 Datasheet, Mosfet, STMicroelectronics

STP16NF25 Features

  • Mosfet Order codes STD16NF25 STF16NF25 STP16NF25 VDS 250 V RDS(on) max 0.235 Ω ID PTOT 14 A 100 W 14 A(1) 25 W 14 A 100 W 1. Limited by maximum junction temperature
  • Exceptional

PDF File Details

Part number:

STP16NF25

Manufacturer:

STMicroelectronics ↗

File Size:

1.31MB

Download:

📄 Datasheet

Description:

N-channel power mosfet. These Power MOSFETs have been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize

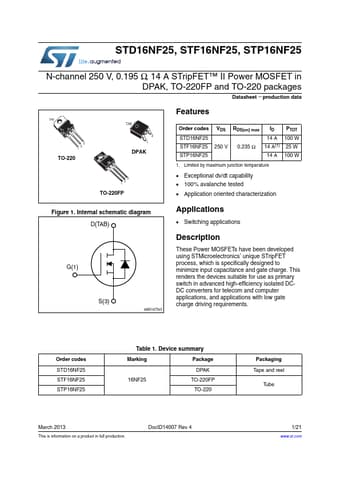

Datasheet Preview: STP16NF25 📥 Download PDF (1.31MB)
Page 2 of STP16NF25 Page 3 of STP16NF25

STP16NF25 Application

  • Applications
  • Switching applications Description These Power MOSFETs have been developed using STMicroelectronics’ unique STripFET process,
