STP16NF06FP, STP16NF06 N-CHANNEL Power MOSFET

ST Microelectronics

Description

STP16NF06 STP16NF06FP N-channel 60V - 0.08Ω - 16A - TO-220/TO-220FP STripFET™ II Power MOSFET General .
This Power MOSFET is the latest development of STMicroelectronics unique "Single Feature Size™" strip-based process.

📥 Download Datasheet

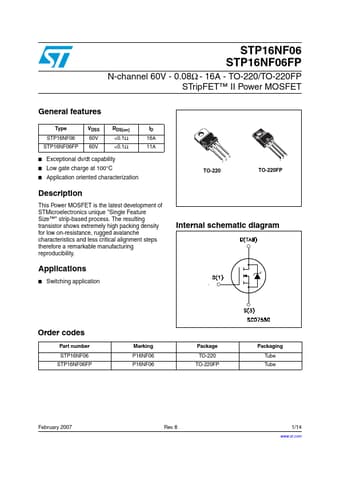

STP16NF06FP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP16NF06FP, STP16NF06. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STP16NF06FP, STP16NF06
Manufacturer: STMicroelectronics ↗
File Size: 306.27 KB
Datasheet: STP16NF06_STMicroelectronics.pdf
Description: N-CHANNEL Power MOSFET
Note: This datasheet PDF includes multiple part numbers: STP16NF06FP, STP16NF06.
Please refer to the document for exact specifications by model.

Features

* Type STP16NF06 STP16NF06FP VDSS 60V 60V RDS(on)

Applications

* Switching application 3 2 1 TO-220 3 2 1 TO-220FP Internal schematic diagram Order codes Part number STP16NF06 STP16NF06FP Marking P16NF06 P16NF06 Package TO-220 TO-220FP Packaging Tube Tube February 2007 Rev 8 1/14 www. st. com 14 Contents Contents STP16NF06 - STP16NF06FP 1 Electr
