STP1N105K3 - N-channel Power MOSFET

STMicroelectronics

The STP1N105K3 by STMicroelectronics is a N-channel Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

STP1N105K3 N-channel Power MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the **STP1N105K3** N-channel Power MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	STP1N105K3
Manufacturer	STMicroelectronics
File Size	319.66 KB
Description	N-channel Power MOSFET
Datasheet	STP1N105K3-STMicroelectronics.pdf

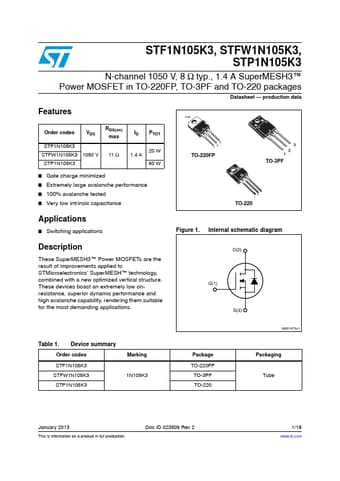

Additional preview pages of the STP1N105K3 datasheet.

STP1N105K3 Product details

Description

These SuperMESH3™ Power MOSFETs are the result of improvements applied to STMicroelectronics’ SuperMESH™ technology, combined with a new optimized vertical structure. 6 Table 1. Device summary Order codes STF1N105K3 STFW1N105K3 STP1N105K3 Marking 1N105K3 Package TO-220FP TO-3PF TO-220 $0Y Packaging

Features

Order codes VDS RDS(on) max ID PTOT STF1N105K3 STFW1N105K3 1050 V STP1N105K3 11 Ω 20 W 1.4 A 60 W.
Gate charge minimized.
Extremely large avalanche performance.
100% avalanche tested.
Very low intrinsic capacitance TAB 3 2 1 TO-220FP 1 3 2 1 TO-3PF 3 2 1 TO-220.
