STP2N80K5 N-channel Power MOSFET

STP2N80K5 Description

STD2N80K5, STF2N80K5, STP2N80K5, STU2N80K5 N-channel 800 V, 3.5 Ω typ., 2 A MDmesh™ K5 Power MOSFETs in DPAK, TO-220FP, TO-220 and IPAK packages Datas.
These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.

STP2N80K5 Features

* Order codes STD2N80K5 STF2N80K5 STP2N80K5 STU2N80K5 VDS 800 V RDS(on)max 4.5 Ω ID 2A PTOT 45 W 20 W 45 W
* Industry’s lowest RDS(on)
* area
* Industry’s best figure of merit (FoM)
* Ultra low gate charge
* 100% avalanche tested
* Zener-protected App

📥 Download Datasheet

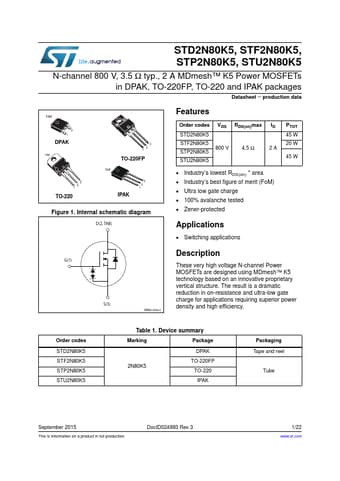

Preview of STP2N80K5 PDF
datasheet Preview Page 2 datasheet Preview Page 3
