STP2NA50 Datasheet - ST Microelectronics

STP2NA50 N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR

STP2NA50 STP2NA50FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR PRELIMINARY DATA T YPE ST P2NA50 ST P2NA50FI s s s s s s s V DSS 500 V 500 V R DS(o n) <4Ω <4 Ω ID 2.8 A 2A TYPICAL RDS(on) = 3.25 Ω ± 30V GATE TO SOURCE VOLTAGE RATING 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW INTRINSIC CAPACITANCES GATE CHARGE MINIMIZED REDUCED THRESHOLD VOLTAGE SPREAD TO-220 1 2 3 1 2 3 APPLICATIONS s MEDIUM CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s CONS.

STP2NA50 Datasheet (57.65 KB)

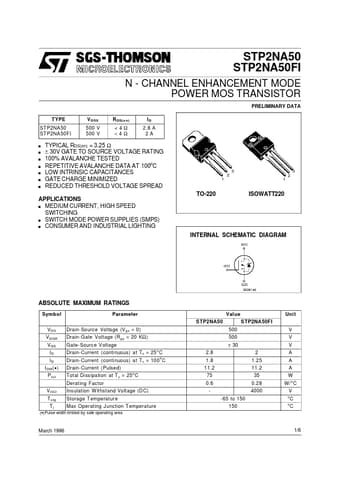

Preview of STP2NA50 PDF

Datasheet Details

Part number:

STP2NA50

Manufacturer:

STMicroelectronics ↗

File Size:

57.65 KB

Description:

N - channel enhancement mode power mos transistor.
