STP2NK100Z - N-channel Power MOSFET

STMicroelectronics

📥 Download Datasheet

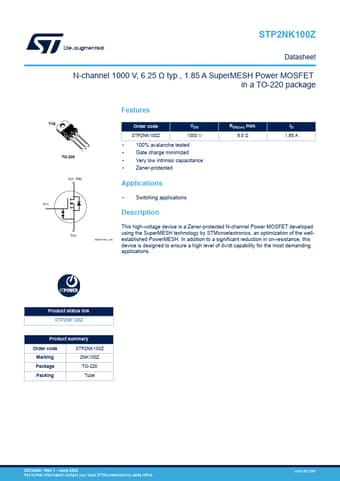

STP2NK100Z Datasheet Preview — Preview of STP2NK100Z PDF

Datasheet Details

Part number	STP2NK100Z
Manufacturer	STMicroelectronics
File Size	610.17 KB
Description	N-channel Power MOSFET
Datasheet	STP2NK100Z_STMicroelectronics.pdf

STP2NK100Z Product details

Description

This high-voltage device is a Zener-protected N-channel Power MOSFET developed S(3) using the SuperMESH technology by STMicroelectronics, an optimization of the well- AM01476v1_tab established PowerMESH.In addition to a significant reduction in on-resistance, this device is designed to ensure a high level of dv/dt capability for the most demanding applications.Product status link STP2NK100Z Product summary Order code STP2NK100Z Marking 2NK100Z Package TO-220 Packing Tube DS143

Features

TAB TO-220 1 23 D(2, TAB) Order code VDS STP2NK100Z 1000 V.
100% avalanche tested.
Gate charge minimized.
Very low intrinsic capacitance.
Zener-protected.
