STP2NK60Z Datasheet, Mosfet, STMicroelectronics

STP2NK60Z Features

  • Mosfet TYPE VDSS RDS(on) ID Pw STF2NK60Z STQ2NK60ZR-AP STP2NK60Z STD2NK60Z-1 600 V 600 V 600 V 600 V <8Ω <8Ω <8Ω <8Ω 1.4 A 0.4 A 1.4 A 1.4 A 20 3W 45 W 45 W s TYPICAL RDS(on) = 7.2 Ω

PDF File Details

Part number:

STP2NK60Z

Manufacturer:

STMicroelectronics ↗

File Size:

424.27kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition

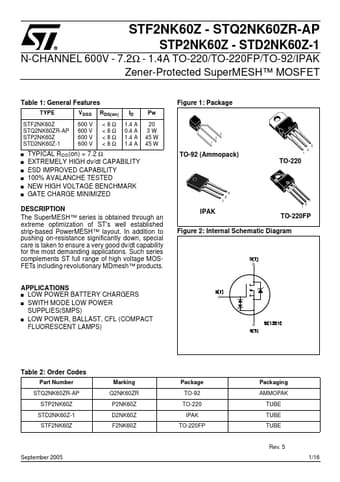

Datasheet Preview: STP2NK60Z 📥 Download PDF (424.27kb)
Page 2 of STP2NK60Z Page 3 of STP2NK60Z

STP2NK60Z Application

  • Applications Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. Figure 1: Package TO-92 (Amm
