STP2N60FI N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR

www.DataSheet4U.com STP2N60 STP2N60FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR TYPE STP2N60 STP2N60FI s s s s s V DSS 600 V 600 V R DS( on) < 3.5 Ω < 3.5 Ω ID 2.9 A 2.2 A TYPICAL RDS(on) = 3.2 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC APPLICATION ORIENTED CHARACTERIZATION TO-220 3 1 2 1 2 3 APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s CHOPPER REGULATORS, CONVERTERS, MOTOR CONTROL, LIGHTING FO.

STP2N60FI_STMicroelectronics.pdf

STP2N60FI Datasheet Preview — Preview of STP2N60FI PDF

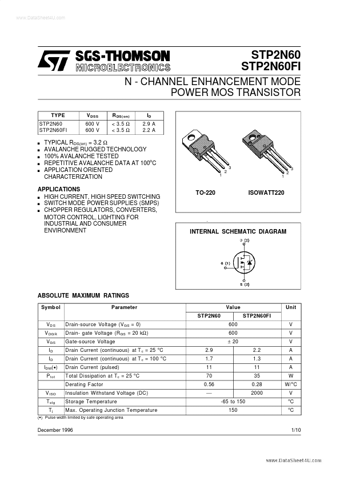

STP2N60FI Datasheet Preview Page 2

STP2N60FI Datasheet Preview Page 3

Datasheet Details

Part number:

STP2N60FI

Manufacturer:

STMicroelectronics ↗

File Size:

232.44 KB

Description:

N-channel enhancement mode power mos transistor.
