STP2NC70Z - N-CHANNEL MOSFET

Name: STP2NC70Z
SKU: STP2NC70Z-609009

STMicroelectronics

📥 Download Datasheet

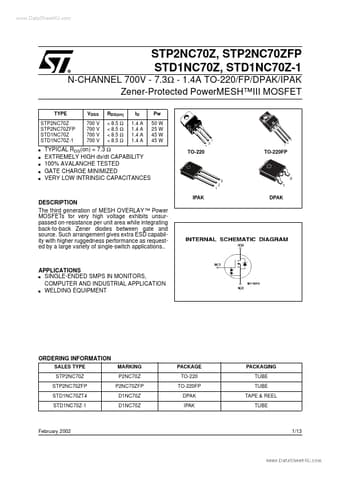

STP2NC70Z Datasheet Preview — Preview of STP2NC70Z PDF

Datasheet Details

Part number	STP2NC70Z
Manufacturer	STMicroelectronics
File Size	528.06 KB
Description	N-CHANNEL MOSFET
Datasheet	STP2NC70Z_STMicroelectronics.pdf

STP2NC70Z Product details

Description

The third generation of MESH OVERLAY ™ Power MOSFETs for very high voltage exhibits unsurpassed on-resistance per unit area while integrating back-to-back Zener diodes between gate and source.

Features

OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to souce. In this respect the Zener voltage is appropriate to achieve an efficient and costeffective intervention to protect the device’s integrity. These integrated Zener diodes thus avoid the usage of external components. 2/13 www. DataShee.
