STP2NA50FI, STP2NA50 Datasheet - ST Microelectronics

STP2NA50FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR

STP2NA50 STP2NA50FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR PRELIMINARY DATA T YPE ST P2NA50 ST P2NA50FI s s s s s s s V DSS 500 V 500 V R DS(o n) <4Ω <4 Ω ID 2.8 A 2A TYPICAL RDS(on) = 3.25 Ω ± 30V GATE TO SOURCE VOLTAGE RATING 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW INTRINSIC CAPACITANCES GATE CHARGE MINIMIZED REDUCED THRESHOLD VOLTAGE SPREAD TO-220 1 2 3 1 2 3 APPLICATIONS s MEDIUM CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s CONS.

STP2NA50_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STP2NA50FI, STP2NA50. Please refer to the document for exact specifications by model.

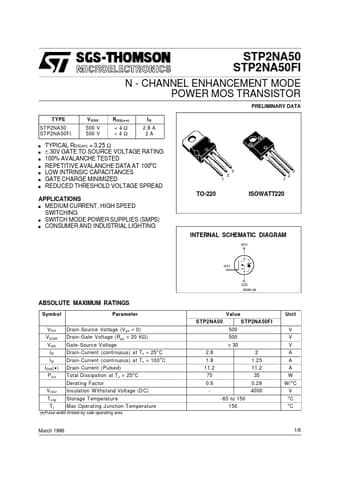

STP2NA50FI Datasheet Preview Page 2 STP2NA50FI Datasheet Preview Page 3

Datasheet Details

Part number:

STP2NA50FI, STP2NA50

Manufacturer:

STMicroelectronics ↗

File Size:

57.65 KB

Description:

N - channel enhancement mode power mos transistor.

Note:

This datasheet PDF includes multiple part numbers: STP2NA50FI, STP2NA50.
Please refer to the document for exact specifications by model.
