STP2NK90Z N-CHANNEL MOSFET

STP2NK90Z Description

STP2NK90Z - STD2NK90Z www.DataSheet4U.com STD2NK90Z-1 N-CHANNEL 900V - 5Ω - 2.1A TO-220/DPAK/IPAK Zener-Protected SuperMESH™MOSFET Table 1: General Fe.
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout.

STP2NK90Z Features

* TYPE STD2NK90Z STD2NK90Z-1 STP2NK90Z s s s s s s s Figure 1: Package ID 2.1 A 2.1 A 2.1 A Pw 70 W 70 W 70 W 3 1 VDSS 900 V 900 V 900 V RDS(on) < 6.5 Ω < 6.5 Ω < 6.5 Ω TYPICAL RDS(on) = 5 Ω EXTREMELY HIGH dv/dt CAPABILITY IMPROVED ESD CAPABILITY 100% AVALANCHE RATED GATE CHARGE MINIMIZED VERY LOW

STP2NK90Z Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. IPAK Figure 2: Internal Schematic Diagram APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s IDEAL FOR OFF-LINE POWER SUPPLIES, ADAPTORS AND PFC Table 2: Order Codes SALES TYPE STD2NK90ZT4 S

📥 Download Datasheet

Preview of STP2NK90Z PDF

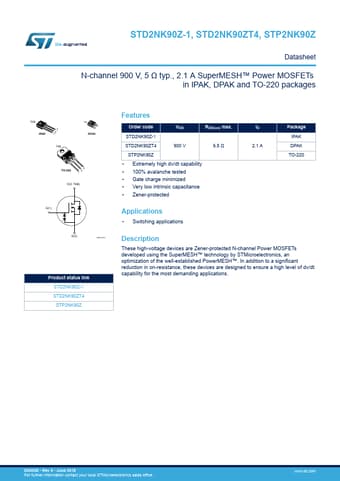

datasheet Preview Page 2 datasheet Preview Page 3
