STP315N10F7 - N-CHANNEL POWER MOSFET

STMicroelectronics

The STP315N10F7 by STMicroelectronics is a N-CHANNEL POWER MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

STP315N10F7 N-CHANNEL POWER MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the **STP315N10F7** N-CHANNEL POWER MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	STP315N10F7
Manufacturer	STMicroelectronics
File Size	441.56 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STP315N10F7-STMicroelectronics.pdf
Additional preview pages of the STP315N10F7 datasheet.

STP315N10F7 Product details

Description

This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.

Features

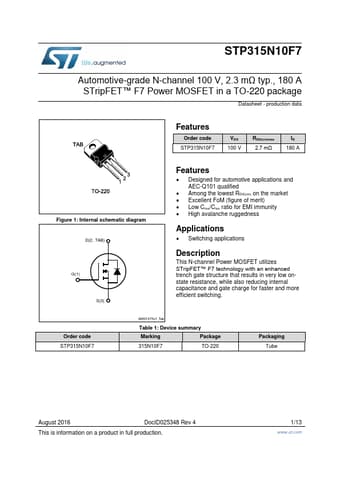

Order code STP315N10F7 VDS 100 V RDS(on)max 2.7 mΩ ID 180 A Figure 1: Internal schematic diagram D(2, TAB) G(1) S(3) Features.
Designed for automotive.
