STP7LN80K5 N-channel Power MOSFET

STP7LN80K5 Description

STP7LN80K5 N-channel 800 V, 0.95 Ω typ., 5 A MDmesh™ K5 Power MOSFET in a TO-220 package Datasheet - production data Figure 1: Internal schematic di.
This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.

STP7LN80K5 Features

* Order code STP7LN80K5 VDS 800 V RDS(on) max. 1.15 Ω ID 5A
* Industry’s lowest RDS(on) x area
* Industry’s best figure of merit (FoM)
* Ultra-low gate charge
* 100% avalanche tested

📥 Download Datasheet

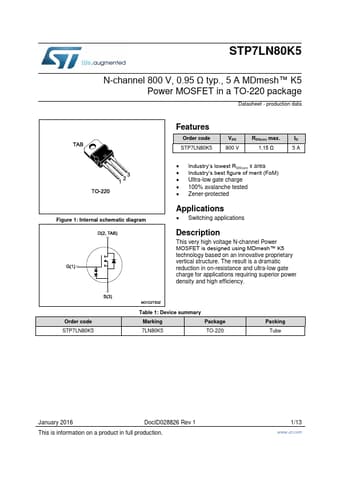

Preview of STP7LN80K5 PDF
