STPM01 - Programmable single phase energy metering-IC

STMicroelectronics

📥 Download Datasheet

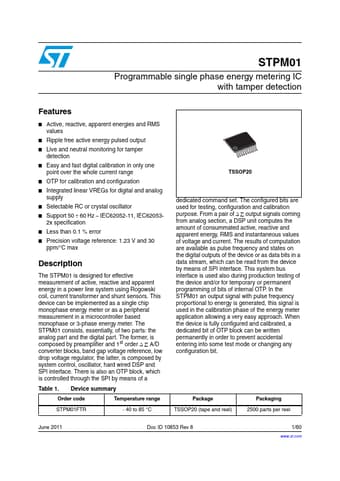

STPM01 Datasheet Preview — Preview of STPM01 PDF

Datasheet Details

Part number: STPM01
Manufacturer: STMicroelectronics ↗
File Size: 1.20 MB
Datasheet: STPM01_STMicroelectronics.pdf
Description: Programmable single phase energy metering-IC

STPM01 Product details

Description

The STPM01 is designed for effective measurement of active, reactive and apparent energy in a power line system using Rogowski coil, current transformer and shunt sensors.

Features

Active, reactive, apparent energies and RMS values.
Ripple free active energy pulsed output.
Live and neutral monitoring for tamper detection.
Easy and fast digital calibration in only one point over the whole current range.
OTP for calibration and configuration.
Integrated linear VREGs for digital and analog supply.
Selectable RC or crystal oscillator.
Support 50 ÷ 60 Hz.
IEC62052-11, IEC62053- 2x specification.
Less than 0.1 % error.
