STPM066S - Power management

Datasheet Summary

Description

STPM066S is a multiple voltage regulator composed by one battery compatible BUCK pre-regulator, one BOOST, one LDO and a precise voltage reference regulator.

All the regulators have internal power switches.

Features

  • VFQFPN-48 (7x7 mm) Product status link STPM066S Product summary Order code Package Packing STPM066SV0Y STPM066SV0T VFQFPN-48 Tray Tape and reel.
  • AEC-Q100 qualified.
  • Pre SMPS BUCK regulator, adjustable via OTP to 1.0 V, 1.1 V, 1.2 V, 1.35 V, 1.5 V, 3.3 V, 3.6 V, 5.0 V at 1.35/2.6 A min peak current limit, 0.4/2.4 MHz.
  • Post SMPS BOOST regulator, adjustable via OTP to 5.0 V at 0.3 A max load current, 7.0 V at 0.2 A max load current, 2.4 MHz.
  • Post Linear r.

📥 Download Datasheet

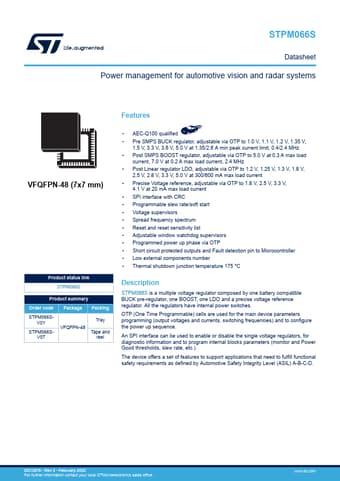

Datasheet preview – STPM066S
