STPM098C - Automotive dual digital 8-phase controller

STMicroelectronics

📥 Download Datasheet

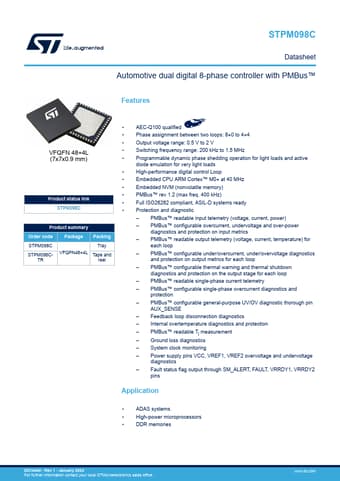

STPM098C Datasheet Preview — Preview of STPM098C PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: STPM098C
Manufacturer: STMicroelectronics ↗
File Size: 1.72 MB
Datasheet: STPM098C-STMicroelectronics.pdf
Description: Automotive dual digital 8-phase controller

STPM098C Product details

Description

STPM098C is a dual-loop digital multi-phase buck controller with built-in NVM and PMBus™ interface for automotive applications.

Features

VFQFN 48+4L.
(7x7x0.9 mm).
Product status link.
STPM098C.
Product summary Order code Package Packing STPM098C STPM098CTR VFQPN48+4L Tray Tape and reel AEC-Q100 qualified Phase assignment between two loops: 8+0 to 4+4 Output voltage range: 0.5 V to 2 V Switching frequency range: 200 kHz to 1.5 MHz Programmable dynamic phase shedding operation for light loads and active d.
