Description

STPMIC1 Datasheet Highly integrated power management IC for micro processor units Product status link STPMIC1 Device summary STPMIC1APQR STPMIC1BP.
The STPMIC1 is a fully integrated power management IC designed for products based on high integrated application processor designs requiring low power.

📥 Download Datasheet

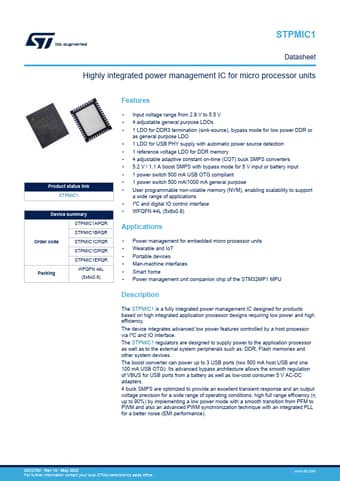

STPMIC1BPQR Datasheet Preview — This datasheet PDF includes multiple part numbers: STPMIC1BPQR, STPMIC1. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STPMIC1BPQR, STPMIC1
Manufacturer: STMicroelectronics ↗
File Size: 7.66 MB
Datasheet: STPMIC1-STMicroelectronics.pdf
Description: Highly integrated power management
Note: This datasheet PDF includes multiple part numbers: STPMIC1BPQR, STPMIC1.
Please refer to the document for exact specifications by model.

Features

* Input voltage range from 2.8 V to 5.5 V
* 4 adjustable general purpose LDOs
* 1 LDO for DDR3 termination (sink-source), bypass mode for low power DDR or as general purpose LDO
* 1 LDO for USB PHY supply with automatic power source detection
* 1 reference vol

Applications

* I²C and digital IO control interface
* WFQFN 44L (5x6x0.8) Applications
* Power management for embedded micro processor units
* Wearable and IoT
* Portable devices
* Man-machine interfaces
* Smart home
* Power management unit companio
