STPMIC1EPQR, STPMIC1 - Highly integrated power management

STMicroelectronics

The STPMIC1EPQR by STMicroelectronics is a Highly integrated power management. Below is the official datasheet preview.

📥 Download Datasheet

STPMIC1EPQR Highly integrated power management by STMicroelectronics - Datasheet Preview — Official preview page of the **STPMIC1EPQR** Highly integrated power management datasheet (STMicroelectronics).

Datasheet Details

Part number	STPMIC1EPQR, STPMIC1
Manufacturer	STMicroelectronics
File Size	7.66 MB
Description	Highly integrated power management
Datasheet	STPMIC1-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STPMIC1EPQR, STPMIC1. Please refer to the document for exact specifications by model.

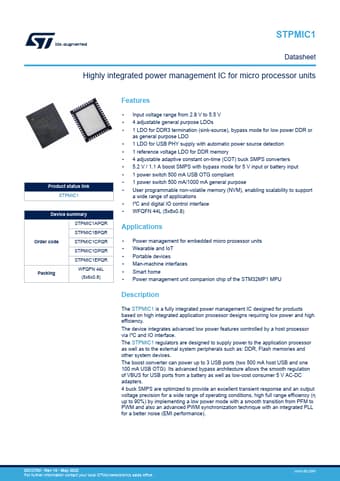

Additional preview pages of the STPMIC1EPQR datasheet.

STPMIC1EPQR Product details

Description

The STPMIC1 is a fully integrated power management IC designed for products based on high integrated application processor designs requiring low power and high efficiency.

Features

Input voltage range from 2.8 V to 5.5 V.
4 adjustable general purpose LDOs.
1 LDO for DDR3 termination (sink-source), bypass mode for low power DDR or as general purpose LDO.
1 LDO for USB PHY supply with automatic power source detection.
1 reference voltage LDO for DDR memory.
4 adjustable adaptive constant on-time (COT) buck SMPS converters.
5.2 V / 1.1 A boost SMPS with bypass mode for 5 V input or battery input.
1 power.
