STPMIC1DPQR, STPMIC1 Highly integrated power management

STPMIC1DPQR Description

STPMIC1 Datasheet Highly integrated power management IC for micro processor units Product status link STPMIC1 Device summary STPMIC1APQR STPMIC1BP.
The STPMIC1 is a fully integrated power management IC designed for products based on high integrated application processor designs requiring low power.

STPMIC1DPQR Features

* Input voltage range from 2.8 V to 5.5 V
* 4 adjustable general purpose LDOs
* 1 LDO for DDR3 termination (sink-source), bypass mode for low power DDR or as general purpose LDO
* 1 LDO for USB PHY supply with automatic power source detection
* 1 reference vol

STPMIC1DPQR Applications

* I²C and digital IO control interface
* WFQFN 44L (5x6x0.8) Applications
* Power management for embedded micro processor units
* Wearable and IoT
* Portable devices
* Man-machine interfaces
* Smart home
* Power management unit companio

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPMIC1DPQR, STPMIC1. Please refer to the document for exact specifications by model.

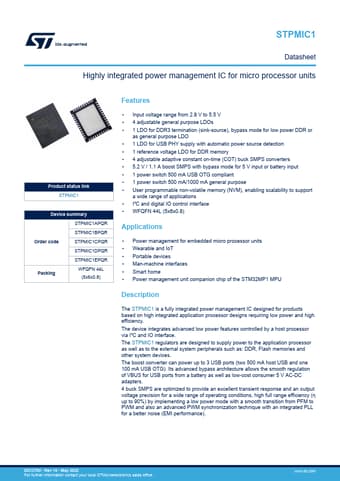

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPMIC1DPQR, STPMIC1
Manufacturer
STMicroelectronics ↗
File Size
7.66 MB
Datasheet
STPMIC1-STMicroelectronics.pdf
Description
Highly integrated power management
Note
This datasheet PDF includes multiple part numbers: STPMIC1DPQR, STPMIC1.
Please refer to the document for exact specifications by model.
