STPS10H100C - High voltage power Schottky rectifier

STMicroelectronics

📥 Download Datasheet

STPS10H100C Datasheet Preview — Preview of STPS10H100C PDF

Datasheet Details

Part number	STPS10H100C
Manufacturer	STMicroelectronics
File Size	434.29 KB
Description	High voltage power Schottky rectifier
Datasheet	STPS10H100C-STMicroelectronics.pdf

STPS10H100C Product details

Description

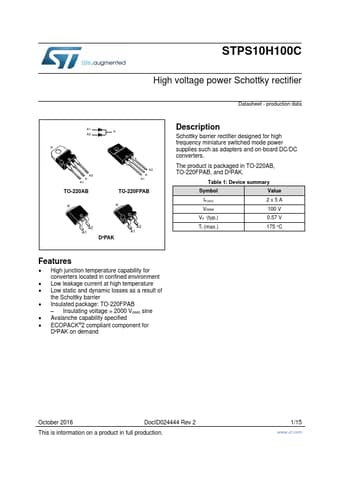

A1 K A2 Schottky barrier rectifier designed for high frequency miniature switched mode power supplies such as adapters and on-board DC/DC converters.The product is packaged in TO-220AB, TO-220FPAB, and D2PAK.Table 1. Device summary K A2 A1 2 D PAK STPS10H100CG-TR IF(AV) VRRM Tj (max) VF(max) 2x5A 100 V 175 °C 0.61 V A1 TO-220AB STPS10H100CT A2 K A1 A2 K TO-220FPAB STPS10H100CFP

Features

High junction temperature capability for converters located in confined environment.
Low leakage current at high temperature.
Low static and dynamic losses as a result of the Schottky barrier.
Avalanche capability specified December 2013 This is information on a product in full production. DocID024444 Rev 1 1/10 www. st. com Characteristics STPS10H100C 1 Characteristics Table 2. Absolute ratings (limiting values, per diode) Symbol VRRM IF(RMS) IF(AV) IFSM IRRM PARM Tst.
