STPS10H60SFY

Automotive 60V Schottky rectifier

STPS10H60SFY Features

* AEC-Q101 qualified

* Low leakage current

* Negligible switching losses

* Avalanche capability specified

* 175 °C maximum junction temperature

* VRRM guaranteed from -40 °C to 175 °C

* Wettable flanks for automatic visual inspection

STPS10H60SFY General Description

The STPS10H60SFY power Schottky rectifier has been designed for automotive applications. Packaged in PSMC (TO-277A), this device provides a very low VF in a compact package which can withstand high operating junction temperature. DS12671 - Rev 1 - August 2018 For further information contact your lo.

STPS10H60SFY Datasheet (458.36 KB)

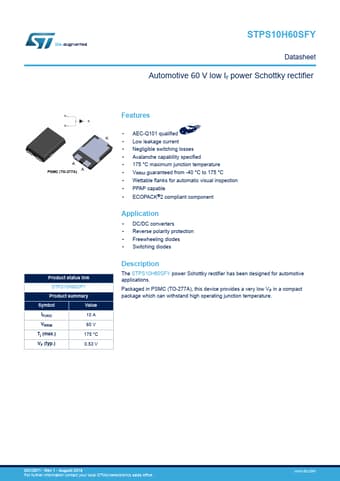

Preview of STPS10H60SFY PDF

Datasheet Details

Part number:

STPS10H60SFY

Manufacturer:

STMicroelectronics ↗

File Size:

458.36 KB

Description:

Automotive 60v schottky rectifier.
STPS10H60SFY Datasheet Automotive 60 V low Ir power Schottky rectifier Product status link STPS10H60SFY Product summary Symbol Value IF(AV) 10 .
