STPS10H100CG, STPS10H100C Datasheet - STMicroelectronics

STPS10H100CG High voltage power Schottky rectifier

Schottky barrier rectifier designed for high frequency miniature switched mode power supplies such as adapters and on-board DC/DC converters. The product is packaged in TO-220AB, TO-220FPAB, and D²PAK. Table 1: Device summary Symbol Value IF(AV) VRRM VF (typ.) Tj (max.) 2x5A 100 V 0.57 V 175 °.

STPS10H100CG Features

* High junction temperature capability for converters located in confined environment

* Low leakage current at high temperature

* Low static and dynamic losses as a result of the Schottky barrier

* Insulated package: TO-220FPAB  Insulating voltage = 2000 VRMS sine

* Avalanche ca

STPS10H100C-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STPS10H100CG, STPS10H100C. Please refer to the document for exact specifications by model.

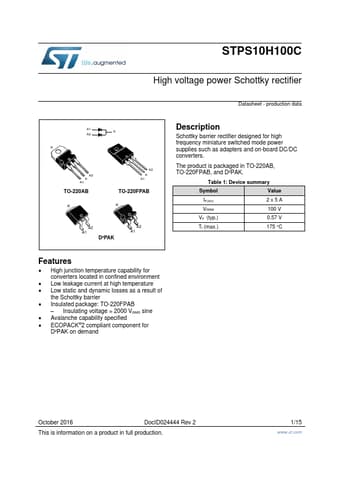

STPS10H100CG Datasheet Preview Page 2 STPS10H100CG Datasheet Preview Page 3

Datasheet Details

Part number:

STPS10H100CG, STPS10H100C

Manufacturer:

STMicroelectronics ↗

File Size:

434.29 KB

Description:

High voltage power schottky rectifier.

Note:

This datasheet PDF includes multiple part numbers: STPS10H100CG, STPS10H100C.
Please refer to the document for exact specifications by model.
