STPS10H60SF

60V power Schottky rectifier

STMicroelectronics

STPS10H60SF Features

* Low profile design

* package typical height of 1.1 mm typ.

* Wettable flanks for automatic visual inspection

* High junction temperature capability

* Low Leakage current

* Avalanche capability

* ECOPACK®2 compliant Applications

* Set-

STPS10H60SF General Description

This 60 V Schottky barrier rectifier has been optimized for use in high frequency miniature DC/DC converters, reverse battery protection, battery chargers and adaptors. Packaged in PSMC (TO-277A), the STPS10H60SF provides a high level of performance in a compact and flat package which can withstand .

STPS10H60SF Datasheet (309.94 KB)

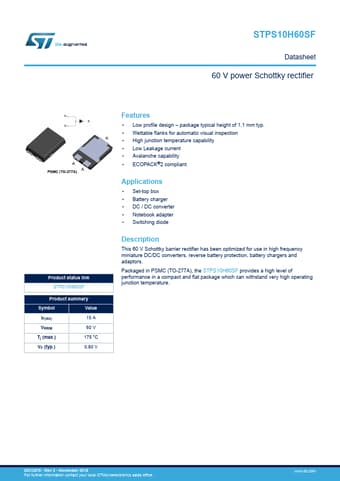

STPS10H60SF Datasheet Preview — Preview of STPS10H60SF PDF

Datasheet Details

Part number:

STPS10H60SF

Manufacturer:

STMicroelectronics ↗

File Size:

309.94 KB

Description:

60v power schottky rectifier.
STPS10H60SF Datasheet 60 V power Schottky rectifier Product status link STPS10H60SF Product summary Symbol Value IF(AV) 10 A VRRM 60 V Tj (ma.
