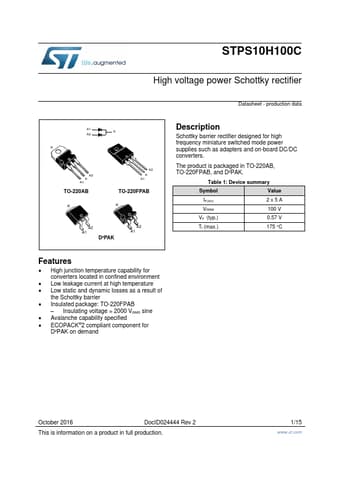

STPS10H100C-STMicroelectronics.pdf
Datasheet Details
Part number:
STPS10H100CFP, STPS10H100C
Manufacturer:
File Size:
434.29 KB
Description:
High voltage power schottky rectifier.
Note:
This datasheet PDF includes multiple part numbers: STPS10H100CFP, STPS10H100C.
Please refer to the document for exact specifications by model.
Schottky barrier rectifier designed for high frequency miniature switched mode power supplies such as adapters and on-board DC/DC converters.
The product is packaged in TO-220AB, TO-220FPAB, and D²PAK.
Table 1: Device summary Symbol Value IF(AV) VRRM VF (typ.) Tj (max.) 2x5A 100 V 0.57 V 175 °
STPS10H100CFP Features
* High junction temperature capability for converters located in confined environment
* Low leakage current at high temperature
* Low static and dynamic losses as a result of the Schottky barrier
* Insulated package: TO-220FPAB Insulating voltage = 2000 VRMS sine
* Avalanche ca
