STPS20200C - Power Schottky diode

STPS20200C Description

STPS20200C Power Schottky diode Datasheet * production data .
This device is a dual center tap 200 V Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters.

STPS20200C Features

* Diode 1 Diode 2 A1 K A2
* Low forward voltage drop
* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low thermal resistance
* -40°C minimum operating Tj
* Insulated package: TO-220FPAB
* Insulati

STPS20200C Applications

* Table 1. Device summary Symbol IF(AV) VRRM Tj(max) VF(typ) Value 2 x 10 A 200 V 175 °C 0.64 V October 2013 This is information on a product in full production. DocID024382 Rev 2 1/15 www. st. com 15 Characteristics STPS20200C 1 Characteristics Table 2. Absolute ratings (limiting values, per d

📥 Download Datasheet

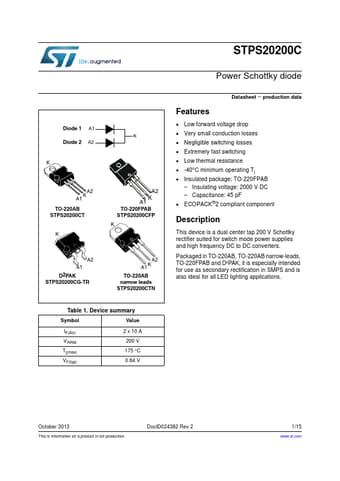

Preview of STPS20200C PDF
