STPS20200CT Datasheet, Diode, STMicroelectronics

STPS20200CT Features

• Diode
• Low forward voltage drop
• Very small conduction losses
• Negligible switching losses
• Extremely fast switching
• Low thermal resistance

PDF File Details

Part number:

STPS20200CT

Manufacturer:

STMicroelectronics ↗

File Size:

416.18kb

Download:

📄 Datasheet

Description:

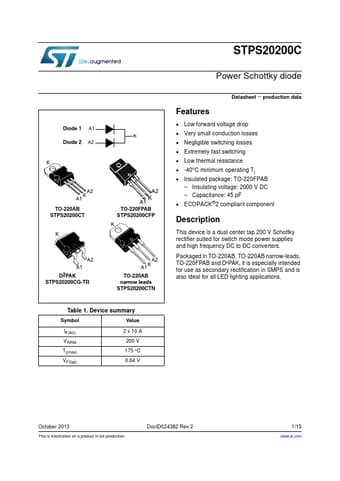

Power schottky diode. This device is a dual center tap 200 V Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converter

STPS20200CT Application

• Applications Table 1. Device summary Symbol Value IF(AV) VRRM Tj(max) VF(typ) 2 x 10 A 200 V 175 °C 0.64 V October 2013 This is information o
