STPS20200CTN, STPS20200C Datasheet - STMicroelectronics

STPS20200CTN Power Schottky diode

This device is a dual center tap 200 V Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters. Packaged in TO-220AB, TO-220AB narrow-leads, TO-220FPAB and D²PAK, it is especially intended for use as secondary rectification in SMPS and is also ideal for all LE.

STPS20200CTN Features

* Low forward voltage drop

* Very small conduction losses

* Negligible switching losses

* Extremely fast switching

* Low thermal resistance

* -40°C minimum operating Tj

* Insulated package: TO-220FPAB

* Insulating voltage: 2000 V DC

STPS20200C_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STPS20200CTN, STPS20200C. Please refer to the document for exact specifications by model.

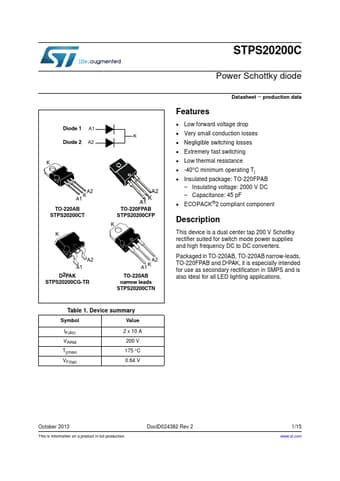

STPS20200CTN Datasheet Preview Page 2 STPS20200CTN Datasheet Preview Page 3

Datasheet Details

Part number:

STPS20200CTN, STPS20200C

Manufacturer:

STMicroelectronics ↗

File Size:

416.18 KB

Description:

Power schottky diode.

Note:

This datasheet PDF includes multiple part numbers: STPS20200CTN, STPS20200C.
Please refer to the document for exact specifications by model.
