STPS20M80C Power Schottky rectifier

STPS20M80C Description

STPS20M80C Power Schottky rectifier .
This dual diode Schottky rectifier is suited for high frequency switch mode power supply.

STPS20M80C Features

* A1 K A2 High junction temperature capability Optimized trade-off between leakage current and forward voltage drop Low leakage current Avalanche capability specified Insulated package TO-220FPAB
* insulated voltage: 2000 V
* package capacitance: 45 pF K

STPS20M80C Applications

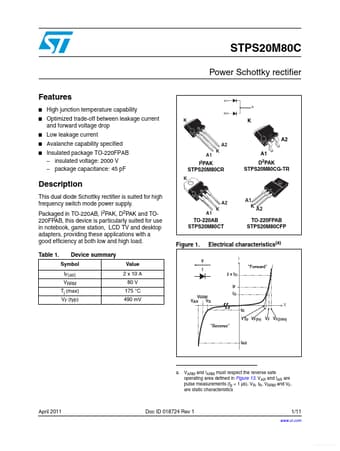

* with a good efficiency at both low and high load. Table 1. Device summary Symbol IF(AV) VRRM Tj (max) VF (typ) Value 2 x 10 A 80 V 175 °C 490 mV VRRM VR VAR V I 2 x IO IF IO A2 A1 K A1 K A2 TO-220AB STPS20M80CT TO-220FPAB STPS20M80CFP Figure 1. Electrical characteristics(a) I "Forward" X X
