STPS2H100

2A Power Schottky rectifier

STMicroelectronics

STPS2H100 Features

* Negligible switching losses

* High junction temperature capability

* Low leakage current

* Good trade-off between leakage current and forward voltage drop

* Avalanche capability specified

* ECOPACK2 component Applications

* Switching diode

STPS2H100 General Description

This Schottky rectifier is designed for high frequency miniature switched mode power supplies such as adaptors and on board DC/DC converters. Packaged in SMA, SMA Flat, SMB, SMB Flat and SMA Flat Notch, the STPS2H100 is ideal for use in lighting and telecom power applications. DS1452 - Rev 10 - Oct.

STPS2H100 Datasheet (403.77 KB)

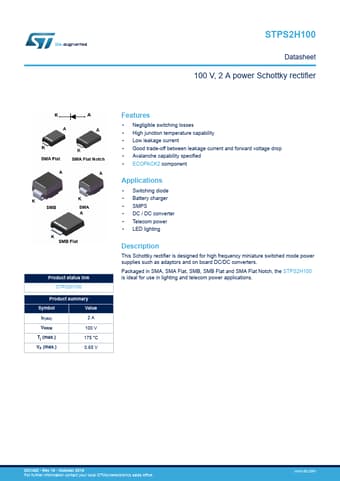

STPS2H100 Datasheet Preview — Preview of STPS2H100 PDF

Datasheet Details

Part number:

STPS2H100

Manufacturer:

STMicroelectronics ↗

File Size:

403.77 KB

Description:

2a power schottky rectifier.
STPS2H100 Datasheet 100 V, 2 A power Schottky rectifier Product status link STPS2H100 Product summary Symbol Value IF(AV) 2A VRRM 100 V Tj (m.
