STPS2H100-Y Datasheet - STMicroelectronics

Automotive power Schottky rectifier

STPS2H100-Y Features

* AEC-Q101 qualified

* PPAP capable

* VRRM guaranteed from -40°C to 175°C

* Low leakage current

* Avalanche capability specified

* ECOPACK2 compliant Applications

* DC/DC converter

* Auxiliary power supply

* Freewheeling functio

STPS2H100-Y General Description

This high quality Schottky barrier rectifier device is designed for high frequency miniature switched mode power supplies such as adaptors or on-board DC/DC converters for automotive applications. Packaged in SMB, SMA and SOD128Flat, the STPS2H100-Y provides a high level of performance in compact an.

STPS2H100-Y Datasheet (228.45 KB)

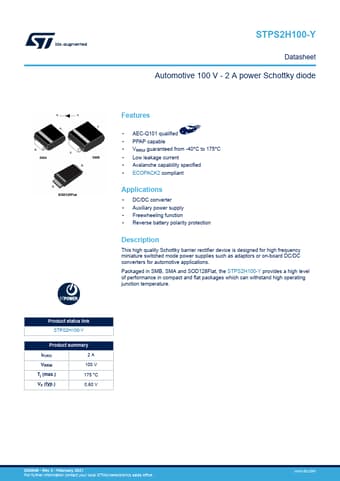

Preview of STPS2H100-Y PDF

Datasheet Details

Part number:

STPS2H100-Y

Manufacturer:

STMicroelectronics ↗

File Size:

228.45 KB

Description:

Automotive power schottky rectifier.
