STPS2H100ZF

Power Schottky rectifier

STPS2H100ZF Features

* High junction temperature capability

* Low leakage current

* Negligible switching losses

* Avalanche capability specified

* ECOPACK®2 compliant component STPS2H100ZF Power Schottky rectifier Datasheet - production data Description Single chip Schottky rectifiers suited to s

STPS2H100ZF General Description

Single chip Schottky rectifiers suited to surface mounting and especially intended for use in high frequency converters, free-wheeling and reverse polarity protection.. Table 1: Device summary Symbol Value IF(AV) VRRM VF (typ.) Tj (max.) 2A 100 V 0.60 V 175 °C August 2016 DocID029645 Rev 1 T.

STPS2H100ZF Datasheet (286.56 KB)

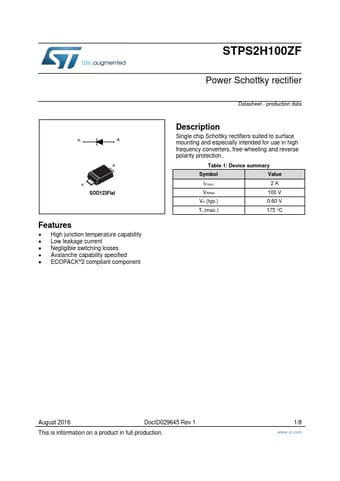

Preview of STPS2H100ZF PDF

Datasheet Details

Part number:

STPS2H100ZF

Manufacturer:

STMicroelectronics ↗

File Size:

286.56 KB

Description:

Power schottky rectifier.
