STPS30M100DJF Datasheet, Rectifier, STMicroelectronics

STPS30M100DJF Features

  • Rectifier
  • Very low conduction losses
  • Low forward voltage drop
  • Low thermal resistance
  • High specified avalanche capability
  • High integration

PDF File Details

Part number:

STPS30M100DJF

Manufacturer:

STMicroelectronics ↗

File Size:

104.38kb

Download:

📄 Datasheet

Description:

Power schottky rectifier. The STPS30M100DJF is a power Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters. Packaged

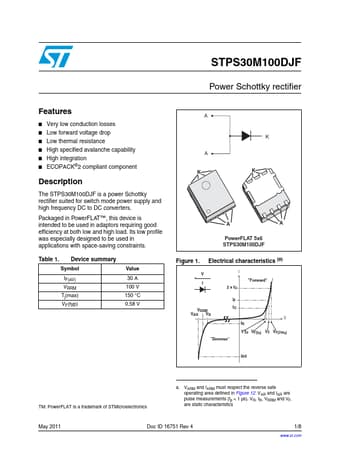

Datasheet Preview: STPS30M100DJF 📥 Download PDF (104.38kb)
Page 2 of STPS30M100DJF Page 3 of STPS30M100DJF

STPS30M100DJF Application

  • Applications with space-saving constraints. Table 1. Device summary Symbol IF(AV) VRRM Tj(max) VF(typ) Value 30 A 100 V 150 °C 0.58 V A A K K K
