STPS30M60SR, STPS30M60S Power Schottky rectifier

STPS30M60SR Description

STPS30M60S Power Schottky rectifier .
The STPS30M60S is a single Schottky diode, suited for high frequency switch mode power supply.

STPS30M60SR Features

* High current capability
* Avalanche rated
* Low forward voltage drop

STPS30M60SR Applications

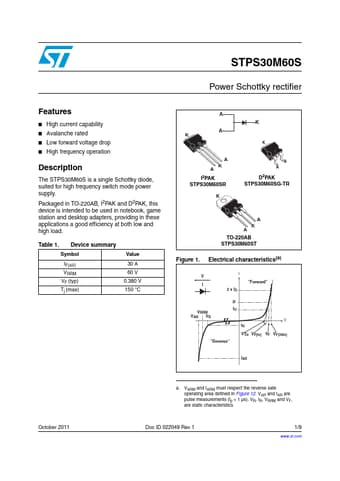

* a good efficiency at both low and high load. Table 1. Device summary Symbol IF(AV) VRRM VF (typ) Tj (max) Value 30 A 60 V 0.380 V 150 °C A A K A K A I2PAK STPS30M60SR K K K A A D2PAK STPS30M60SG-TR A K A TO-220AB STPS30M60ST Figure 1. Electrical characteristics(a) V I "Forward" I 2 x IO X
