STPS30M60DJF Datasheet, Diode, STMicroelectronics

STPS30M60DJF Features

  • Diode
  • Low forward voltage drop
  • Very low conduction losses
  • Low thermal resistance
  • Avalanche rated
  • High integration
  • Thin package: 1 m

PDF File Details

Part number:

STPS30M60DJF

Manufacturer:

STMicroelectronics ↗

File Size:

293.72kb

Download:

📄 Datasheet

Description:

High efficiency power schottky diode. This Schottky rectifier is ideally suited for switch mode power supply and high frequency DC to DC converters. Packaged in PowerFLAT

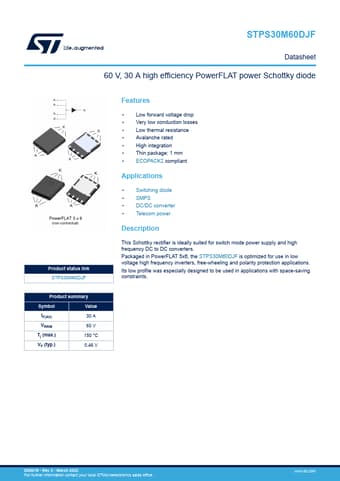

Datasheet Preview: STPS30M60DJF 📥 Download PDF (293.72kb)
Page 2 of STPS30M60DJF Page 3 of STPS30M60DJF

STPS30M60DJF Application

  • Applications
  • Switching diode
  • SMPS
  • DC/DC converter
  • Telecom power Description This Schottky rectifier is ideal
