STPS30M60S Datasheet, Rectifier, STMicroelectronics

STPS30M60S Features

  • Rectifier
  • High current capability
  • Avalanche rated
  • Low forward voltage drop
  • High frequency operation Description The STPS30M60S is a single Schottky diode,

PDF File Details

Part number:

STPS30M60S

Manufacturer:

STMicroelectronics ↗

File Size:

129.68kb

Download:

📄 Datasheet

Description:

Power schottky rectifier. The STPS30M60S is a single Schottky diode, suited for high frequency switch mode power supply. Packaged in TO-220AB, I2PAK and D2PAK,

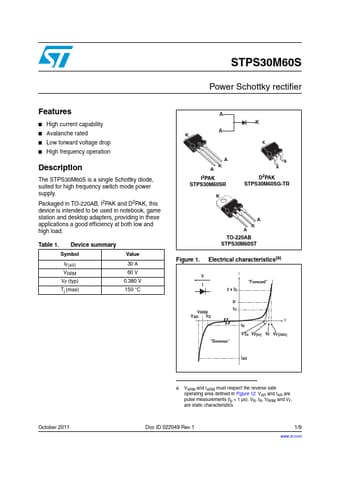

Datasheet Preview: STPS30M60S 📥 Download PDF (129.68kb)
Page 2 of STPS30M60S Page 3 of STPS30M60S

STPS30M60S Application

  • Applications a good efficiency at both low and high load. Table 1. Device summary Symbol IF(AV) VRRM VF (typ) Tj (max) Value 30 A 60 V 0.380 V 150
