STPS40H100CW

HIGH VOLTAGE POWER SCHOTTKY RECTIFIER

STPS40H100CW Features

* 2 x 20 A 100 V 175 °C 0.61 V A2 K NEGLIGIBLE SWITCHING LOSSES LOW LEAKAGE CURRENT GOOD TRADE OFF BETWEEN LEAKAGE CURRENT AND FORWARD VOLTAGE DROP LOW THERMAL RESISTANCE AVALANCHE RATED DESCRIPTION Dual center tap Schottky rectifier suited for Switch Mode Power Supplies and high frequency DC to DC

STPS40H100CW General Description

Dual center tap Schottky rectifier suited for Switch Mode Power Supplies and high frequency DC to DC converters. Packaged in TO-247, this device is intended for use in high frequency inverters. ABSOLUTE RATINGS (limiting values, per diode) Symbol VRRM IF(RMS) IF(AV) IFSM IRRM IRSM EAS Tstg Tj dV/dt .

STPS40H100CW Datasheet (43.33 KB)

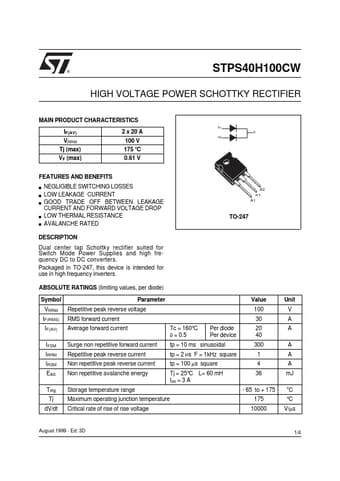

Preview of STPS40H100CW PDF

Datasheet Details

Part number:

STPS40H100CW

Manufacturer:

STMicroelectronics ↗

File Size:

43.33 KB

Description:

High voltage power schottky rectifier.
