STPS4S200 Datasheet - STMicroelectronics

Power Schottky rectifier

STPS4S200 Features

* Negligible switching losses

* High junction temperature capability

* Very small conduction losses

* Low leakage current

* Tj = -40 °C minimum operating

* ECOPACK2 component Applications

* Inverter

* Lighting

* Battery charger

STPS4S200 General Description

Single chip Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters. Packaged in SMB Flat Notch, SMB Flat, SMC and DPAK, the STPS4S200 is ideal for surface mounting and used in low voltage, high frequency inverters, free wheeling and polarity protection applic.

STPS4S200 Datasheet (291.65 KB)

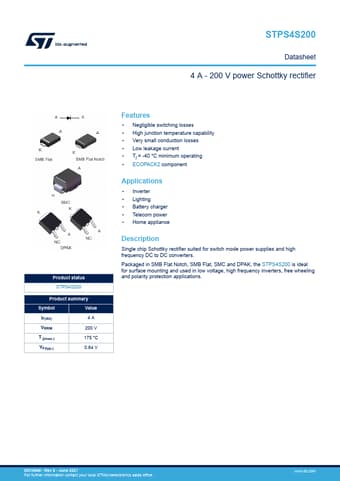

STPS4S200 Datasheet Preview — Preview of STPS4S200 PDF

Datasheet Details

Part number:

STPS4S200

Manufacturer:

STMicroelectronics ↗

File Size:

291.65 KB

Description:

Power schottky rectifier.
STPS4S200 Datasheet 4 A - 200 V power Schottky rectifier Product status STPS4S200 Product summary Symbol Value IF(AV) 4A VRRM 200 V T j(max.).
