STPS5S100SFY

The STPS5S100SFY is Automotive 100V 5A Schottky rectifier designed by STMicroelectronics.

Product Overview

STMicroelectronics

📥 Download Datasheet

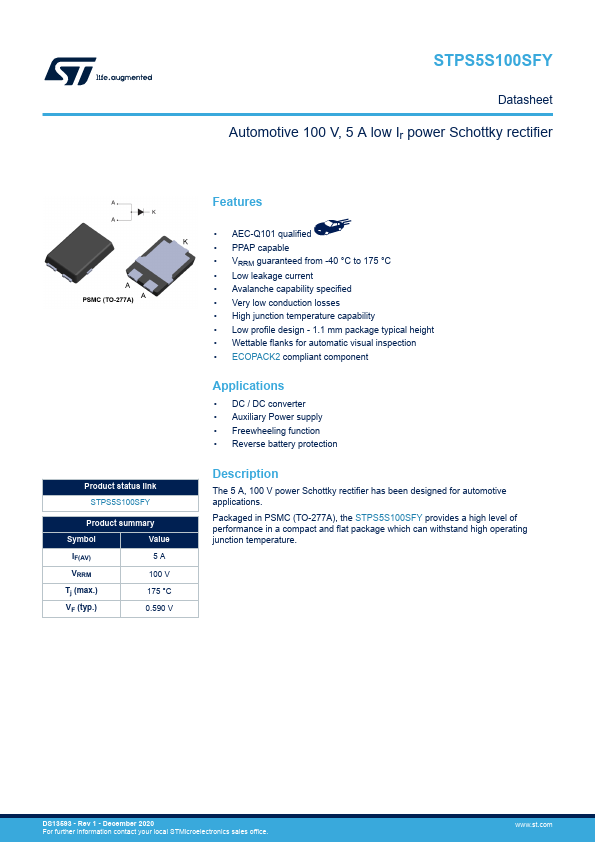

STPS5S100SFY Automotive 100V 5A Schottky rectifier by STMicroelectronics - Datasheet Preview — Datasheet preview – STPS5S100SFY

Datasheet Details

Part number	STPS5S100SFY
Manufacturer	STMicroelectronics
File Size	310.64 KB
Description	Automotive 100V 5A Schottky rectifier
Datasheet	STPS5S100SFY-STMicroelectronics.pdf

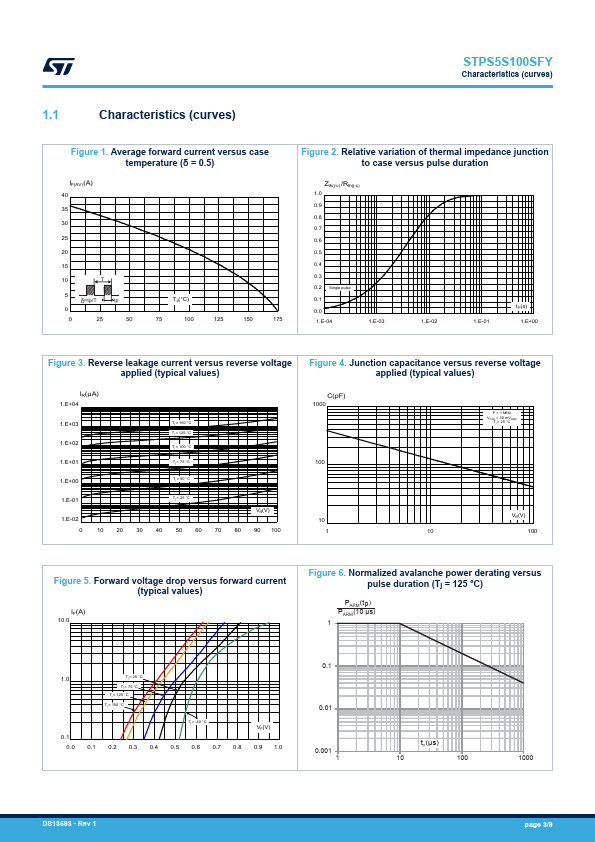

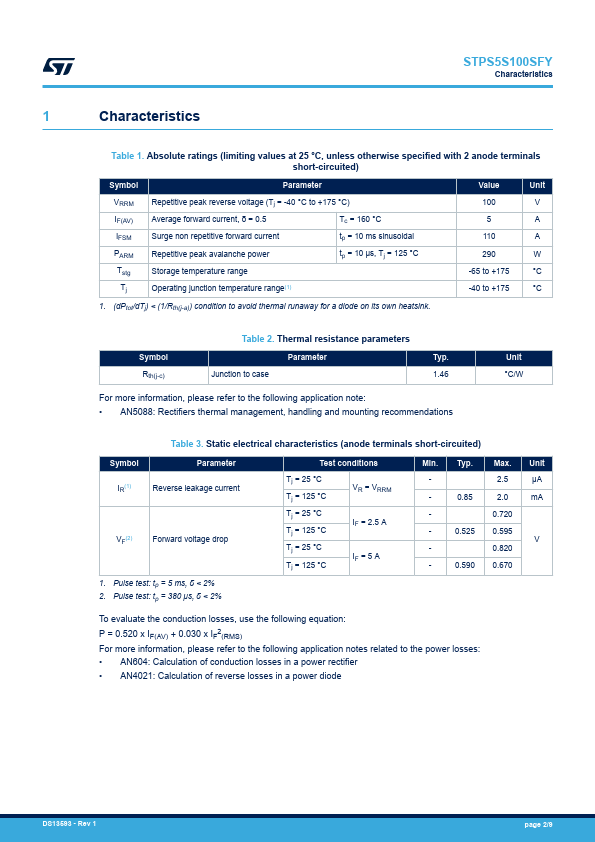

Additional preview pages of the STPS5S100SFY datasheet.

Product details

Description

The 5 A, 100 V power Schottky rectifier has been designed for automotive applications.

Features

AEC-Q101 qualified.
PPAP capable.
VRRM guaranteed from -40 °C to 175 °C.
Low leakage current.
Avalanche capability specified.
Very low conduction losses.
High junction temperature capability.
Low profile design - 1.1 mm package typical height.
Wettable flanks for automatic visual inspection.
ECOPACK2 compliant component.
