STS6PF30L P-CHANNEL POWER MOSFET

STMicroelectronics

Description

P-CHANNEL 30V - 0.027 Ω - 6A SO-8 STripFET™ POWER MOSFET TYPE STS6PF30L www.DataSheet4U.com s TYPICAL s STS6PF30L VDSS 30 V RDS(on) <0.030 Ω ID 6A.
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

📥 Download Datasheet

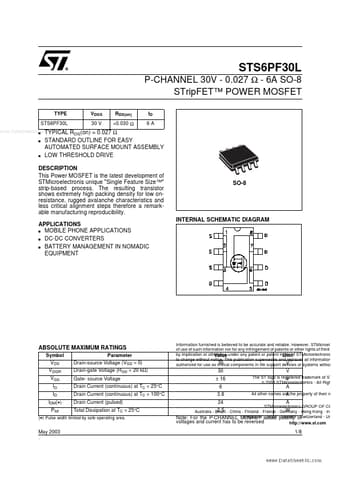

STS6PF30L Datasheet Preview — Preview of STS6PF30L PDF

Datasheet Specifications

Part number: STS6PF30L
Manufacturer: STMicroelectronics ↗
File Size: 242.14 KB
Datasheet: STS6PF30L_STMicroelectronics.pdf
Description: P-CHANNEL POWER MOSFET

Applications

* s MOBILE PHONE APPLICATIONS s DC-DC CONVERTERS s BATTERY MANAGEMENT IN NOMADIC EQUIPMENT SO-8 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM(
* ) Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (
