STU70R1K3S N-Channel MOSFET

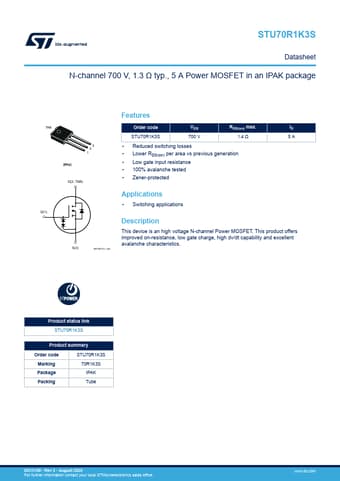

📥 Download Datasheet Datasheet Preview Page 1

Description

STU70R1K3S Datasheet N-channel 700 V, 1.3 Ω typ., 5 A Power MOSFET in an IPAK package TAB G(1) 3 2 1 IPAK D(2, TAB) S(3) AM15572v1_tab .
This device is an high voltage N-channel Power MOSFET.

📥 Download Datasheet

Preview of STU70R1K3S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Order code VDS RDS(on) max. ID STU70R1K3S 700 V 1.4 Ω 5A
* Reduced switching losses
* Lower RDS(on) per area vs previous generation
* Low gate input resistance
* 100% avalanche tested
