STU7LN80K5

N-channel Power MOSFET

STU7LN80K5 Features

* Order code STU7LN80K5 VDS 800 V RDS(on) max. 1.15 Ω ID 5A

* Industry’s lowest RDS(on) x area

* Industry’s best figure of merit (FoM)

* Ultra-low gate charge

* 100% avalanche tested

* Zener-protected Applications

* Switching applications Description

STU7LN80K5 General Description

This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency. Order cod.

STU7LN80K5 Datasheet (287.87 KB)

Preview of STU7LN80K5 PDF

Datasheet Details

Part number:

STU7LN80K5

Manufacturer:

STMicroelectronics ↗

File Size:

287.87 KB

Description:

N-channel power mosfet.

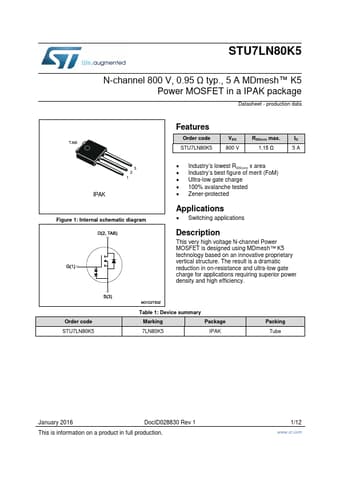

STU7LN80K5 N-channel 800 V, 0.95 Ω typ., 5 A MDmesh™ K5 Power MOSFET in a IPAK package Datasheet - production data TAB IPAK 3 2 1 Figure 1: Inter.
