STU75N3LLH6-S, STU75N3LLH6 - N-channel MOSFET

STMicroelectronics

STU75N3LLH6-S Datasheet Preview — This datasheet PDF includes multiple part numbers: STU75N3LLH6-S, STU75N3LLH6. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	STU75N3LLH6-S, STU75N3LLH6
Manufacturer	STMicroelectronics ↗
File Size	1.12 MB
Description	N-channel MOSFET
Datasheet	STU75N3LLH6_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STU75N3LLH6-S, STU75N3LLH6. Please refer to the document for exact specifications by model.

STU75N3LLH6-S Product details

Description

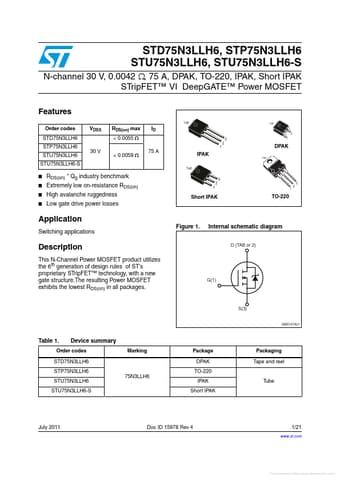

This N-Channel Power MOSFET product utilizes the 6th generation of design rules of ST’s proprietary STripFET™ technology, with a new gate structure.The resulting Power MOSFET exhibits the lowest RDS(on) in all packages.

Features

Order codes STD75N3LLH6 STP75N3LLH6 STU75N3LLH6 STU75N3LLH6-S VDSS 30 V RDS(on) max < 0.0055 Ω ID 75 A < 0.0059 Ω.
RDS(on).
Qg industry benchmark.
Extremely low on-resistance RDS(on).
High avalanche ruggedness.
Low gate drive power losses.
