STU90N4F3 - Power MOSFET

STMicroelectronics

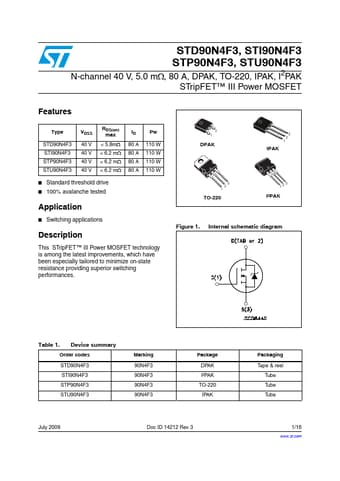

STU90N4F3 Datasheet Preview — Preview of STU90N4F3 PDF

Datasheet Details

Part number	STU90N4F3
Manufacturer	STMicroelectronics ↗
File Size	770.85 KB
Description	Power MOSFET
Datasheet	STU90N4F3_STMicroelectronics.pdf

STU90N4F3 Product details

Description

This n-channel enhancement mode Power MOSFET is the latest refinement of STMicroelectronics unique “single feature size“ strip-based process with less critical alignment steps and therefore a remarkable manufacturing reproducibility.

Features

Type STD90N4F3 STI90N4F3 STP90N4F3 STU90N4F3.
VDSS 40 V 40 V 40 V 40 V RDS(on) max < 6.5 mΩ < 6.5 mΩ < 6.5 mΩ < 6.5 mΩ ID 80 A 80 A 80 A 80 A Pw 1 3 3 2 1 110 W 110 W 110 W 110 W DPAK IPAK Standard threshold drive 100% avalanche tested 1 2 3 3 12.
