STU9HN65M2 Datasheet - STMicroelectronics

N-channel Power MOSFET

STU9HN65M2 General Description

This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to its strip layout and an improved vertical structure, the device exhibits low on-resistance and optimized switching characteristics, rendering it suitable for the most demanding high efficiency converters. S(3).

STU9HN65M2 Datasheet (303.27 KB)

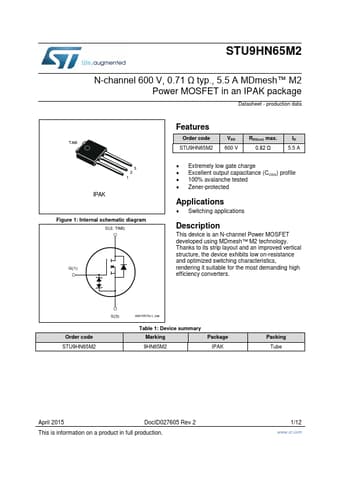

STU9HN65M2 Datasheet Preview — Preview of STU9HN65M2 PDF

Datasheet Details

Part number:

STU9HN65M2

Manufacturer:

STMicroelectronics ↗

File Size:

303.27 KB

Description:

N-channel power mosfet.
STU9HN65M2 N-channel 600 V, 0.71 Ω typ., 5.5 A MDmesh™ M2 Power MOSFET in an IPAK package Datasheet - production data TAB IPAK 3 2 1 Figure 1: In.
