STW35N60DM2 Datasheet - STMicroelectronics

N-channel Power MOSFET

STW35N60DM2 Features

* Order code VDS STW35N60DM2 600 V RDS(on) max. 0.110 Ω ID PTOT 28 A 210 W

* Fast-recovery body diode

* Extremely low gate charge and input capacitance

* Low on-resistance

* 100% avalanche tested

* Extremely high dv/dt ruggedness

* Zener-protected Applications

* Switc

STW35N60DM2 General Description

This high voltage N-channel Power MOSFET is part of the MDmesh™ DM2 fast recovery diode series. It offers very low recovery charge (Qrr) and time (trr) combined with low RDS(on), rendering it suitable for the most demanding high efficiency converters and ideal for bridge topologies and ZVS phase-shi.

STW35N60DM2 Datasheet (568.71 KB)

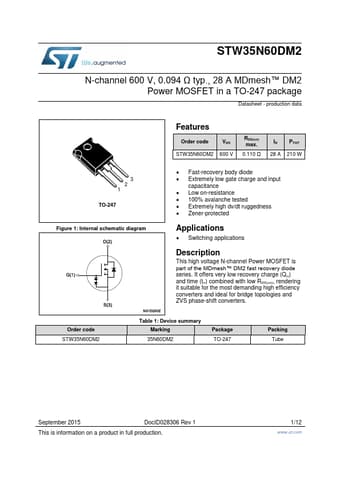

STW35N60DM2 Datasheet Preview — Preview of STW35N60DM2 PDF

Datasheet Details

Part number:

STW35N60DM2

Manufacturer:

STMicroelectronics ↗

File Size:

568.71 KB

Description:

N-channel power mosfet.
STW35N60DM2 N-channel 600 V, 0.094 Ω typ., 28 A MDmesh™ DM2 Power MOSFET in a TO-247 package Datasheet - production data 3 2 1 TO-247 Figure 1: Inte.
